Động cơ RC Servo 9G có kích thước nhỏ, là loại được sử dụng nhiều nhất để làm các mô hình nhỏ hoặc các cơ cấu kéo không cần đến lực nặng, động cơ RC Servo 9G có tốc độ phản ứng nhanh, các bánh răng được làm bằng nhựa nên cần lưu ý khi nâng tải nặng vì có thể làm hư bánh răng, động cơ RC Servo 9G có tích hợp sẵn Driver điều khiển động cơ bên trong nên có thể dễ dàng điều khiển góc quay bằng phương pháp điều độ rộng xung PWM.
Thông số kỹ thuật:
- Điện áp hoạt động: 4.8-5VDC
- Tốc độ: 0.12 sec/ 60 degrees (4.8VDC)
- Lực kéo: 1.6KG.CM
- Kích thước: 21x12x22mm
- Trọng lượng: 9g.

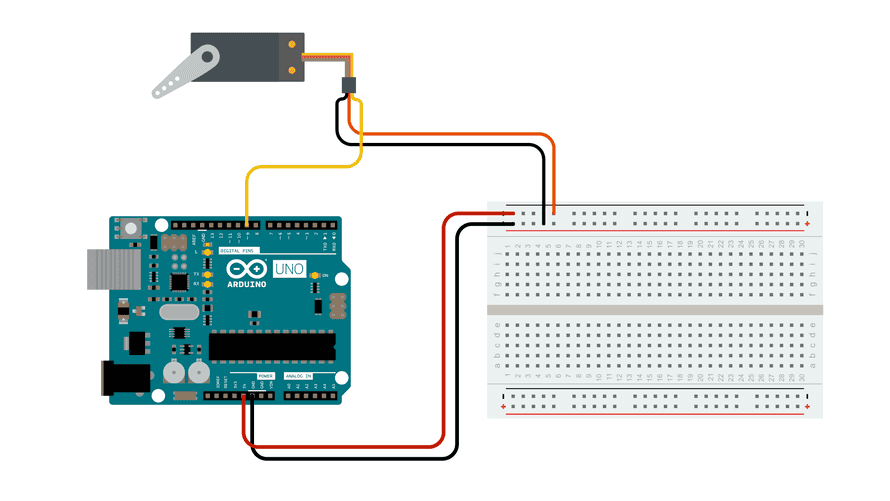

Sơ đồ chân:
Code tham khảo Arduino:
#include <Servo.h>
Servo myservo; // create servo object to control a servo
// twelve servo objects can be created on most boardsint pos = 0; // variable to store the servo position
void setup() {
myservo.attach(9); // attaches the servo on pin 9 to the servo object
}void loop() {
for (pos = 0; pos <= 180; pos += 1) { // goes from 0 degrees to 180 degrees
// in steps of 1 degree
myservo.write(pos); // tell servo to go to position in variable 'pos'
delay(15); // waits 15ms for the servo to reach the position
}
for (pos = 180; pos >= 0; pos -= 1) { // goes from 180 degrees to 0 degrees
myservo.write(pos); // tell servo to go to position in variable 'pos'
delay(15); // waits 15ms for the servo to reach the position
}
}
Tài liệu tham khảo:
Video tham khảo:
