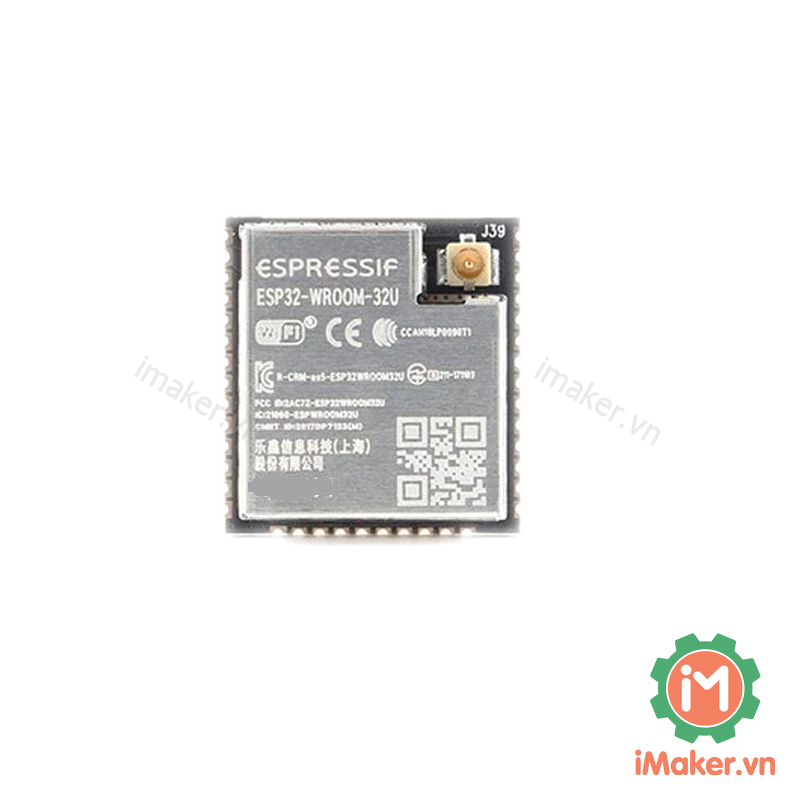

ESP-WROOM-32U là một module WiFi SoC (System-on-Chip) dựa trên chip ESP32 của Espressif Systems. Dưới đây là một số thông số kỹ thuật cụ thể cho module ESP-WROOM-32U:
Thông số kỹ thuật:

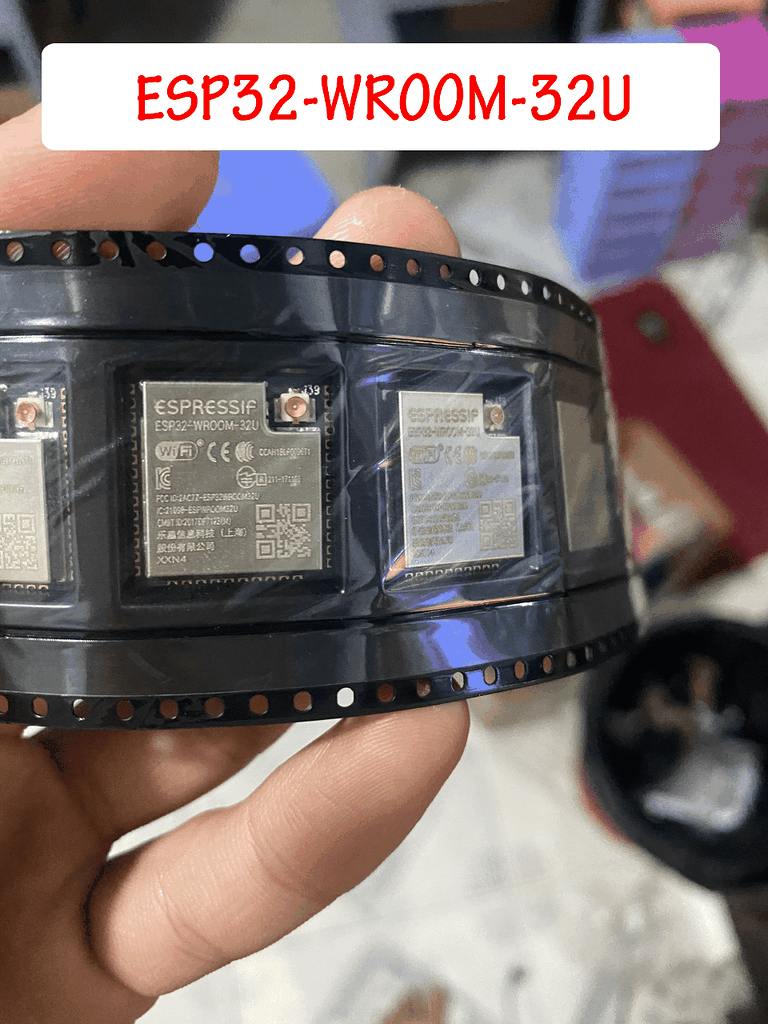

- Model: Wifi BLE SoC ESP32 ESP-WROOM-32U chính hãng Espressif (tương thích hoàn toàn với phiên bản cũ ESP-WROOM-32 hiện đã ngưng sản xuất).
- ESP32-D0WD-V3 embedded, Xtensa® dual-core 32-bit LX6 microprocessor, up to 240 MHz
- Điện áp sử dụng: 3~3.6VDC
- Dòng điện sử dụng: ~90mA
- 448 KB ROM for booting and core functions
- 520 KB SRAM for data and instructions
- 16 KB SRAM in RTC
- 4MB (XXN4) / 16MB (XX0H28) SPI Flash
- Kiểu Anten: iPEX
- WiFi
- 802.11b/g/n
- Bit rate: 802.11n up to 150 Mbps
- A-MPDU and A-MSDU aggregation
- 0.4 µs guard interval support
- Center frequency range of operating channel: 2412 ~ 2484 MHz
- Bluetooth®
- Bluetooth V4.2 BR/EDR and Bluetooth LE specification
- Class-1, class-2 and class-3 transmitter
- AFH
- CVSD and SBC
- Hardware •
- Interfaces: SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, Two-Wire Automotive Interface (TWAI®, compatible with ISO11898-1)
- 40 MHz crystal oscillator
- Kích thước: 18 x 25.5 x 3.1mm
