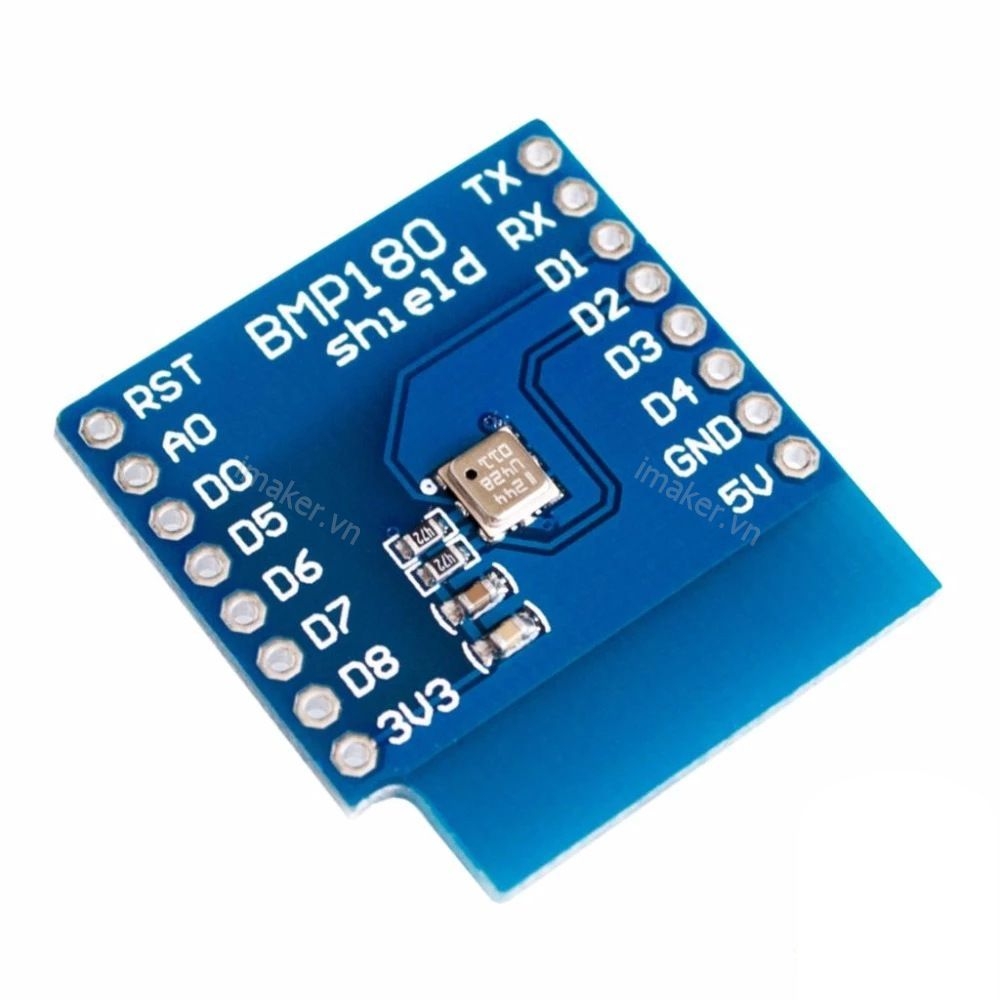

ESP8266 NodeMCU Lua D1 Mini BMP180 Shield được sử dụng với các phiên bản D1 Mini hoặc D1 Mini Pro, có chức năng cảm biến áp suất không khí / nhiệt độ / độ cao qua cảm biến BMP180 chính hãng BOSCH, mạch có thiết kế nhỏ gọn, tiện lắp đặt với nhiều kiểu chân cắm khác nhau.
Thông số kỹ thuật:
- Thành phần chính: Cảm biến áp suất không khí / nhiệt độ / độ cao BMP180.
- Điện áp sử dụng: 3.3VDC.
- Tương thích: NodeMCU Lua D1 Mini hoặc D1 Mini Pro
- Chân kết nối: D1 (SCL) / D2 (SDA)
- Kích thước: 34.2 x 25.6mm.
Code tham khảo Arduino:
/*
* Digital barometric pressure and temperature sensor with I2C interface.
* The Adafruit_BMP085 library supports both the Bosch BMP085 and BMP180 sensors.
* The BMP085 has been discontinued and replaced with the BMP180 which is smaller and less expensive but is identical in terms of wiring and software.
*
* Features:
* Pressure range: 300-1100 hPa (-500m to +9000m above sea level)
* Supply voltage: 1.8-3.6V
* Low power: 5µa at 1 sample / sec in standard mode, 0.1µa in stand by
* Up to 0.03hPa / 0.25m resolution
* -40 to +85°C operational range, ±2°C temperature accuracy
*
* Uses I2C address 0x77
*
* Connections:
* D1 Mini BMP180 / BMP085
* D1 (SCL) -- SCL
* D2 (SDA) -- SDA
* 3V3 ------- VCC
* G --------- GND
*
* Dependencies:
* https://github.com/adafruit/Adafruit-BMP085-Library
*//***************************************************
This is an example for the BMP085 Barometric Pressure & Temp Sensor
Designed specifically to work with the Adafruit BMP085 Breakout
----> https://www.adafruit.com/products/391
----> http://www.adafruit.com/products/1603
These displays use I2C to communicate, 2 pins are required to interface
Adafruit invests time and resources providing this open source code,
please support Adafruit and open-source hardware by purchasing
products from Adafruit!
Written by Limor Fried/Ladyada for Adafruit Industries.
BSD license, all text above must be included in any redistribution
****************************************************/#include <Wire.h>
#include <Adafruit_BMP085.h>Adafruit_BMP085 bmp;
void setup() {
Serial.begin(9600);
if (!bmp.begin()) {
Serial.println("Could not find BMP180 or BMP085 sensor at 0x77");
while (1) {}
}
}void loop() {
Serial.print("Temperature = ");
Serial.print(bmp.readTemperature());
Serial.println(" °C");Serial.print("Pressure = ");
Serial.print(bmp.readPressure());
Serial.println(" Pa");// Calculate altitude assuming 'standard' barometric
// pressure of 1013.25 millibar = 101325 Pascal
Serial.print("Altitude = ");
Serial.print(bmp.readAltitude());
Serial.println(" meters");Serial.print("Pressure at sea level (calculated) = ");
Serial.print(bmp.readSealevelPressure());
Serial.println(" Pa");// you can get a more precise measurement of altitude
// if you know the current sea level pressure which will
// vary with weather and such. If it is 1015 millibars
// that is equal to 101500 Pascals.
Serial.print("Real altitude = ");
Serial.print(bmp.readAltitude(101500));
Serial.println(" meters");Serial.println();
delay(500);
}
