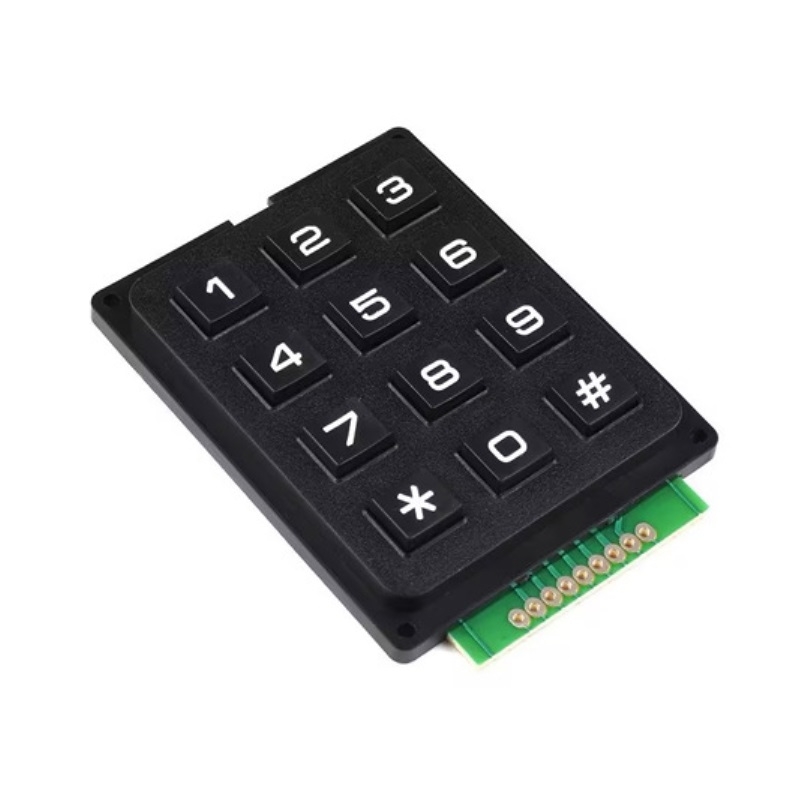

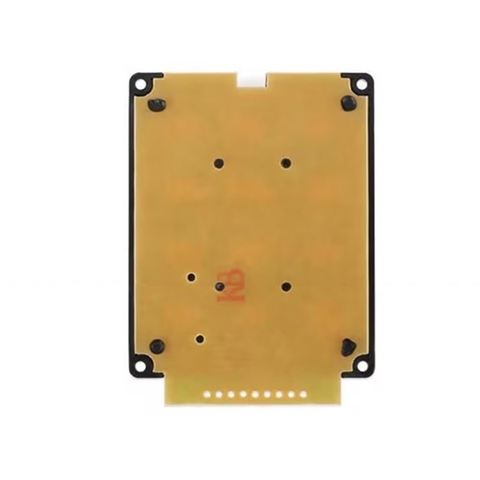

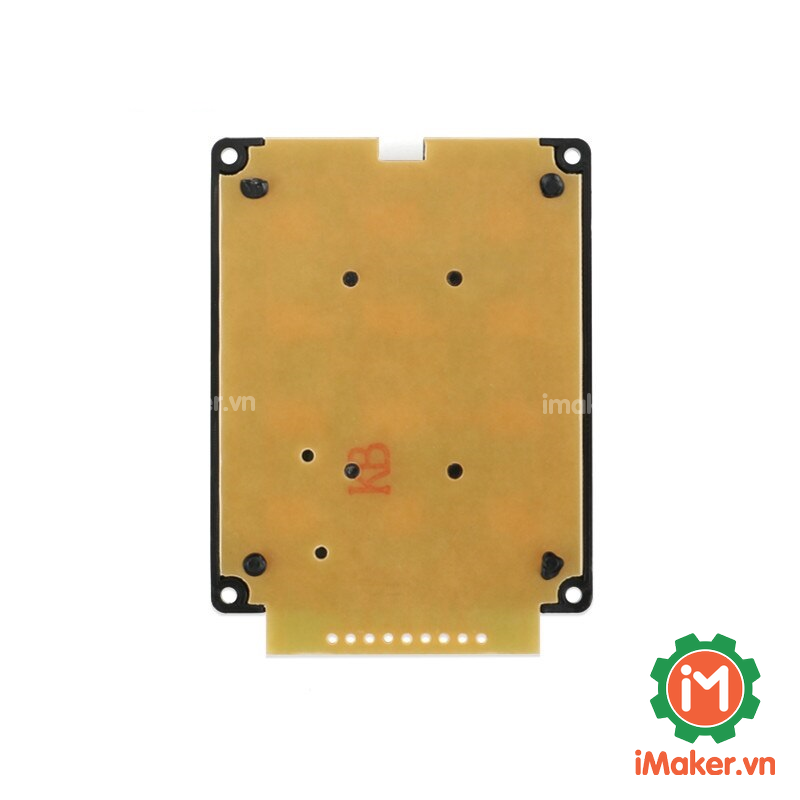

Bàn phím ma trận 3x4 nhựa cứng gồm có 16 nút bấm được sắp xếp theo ma trận 3 hàng, 4 cột. Các nút bấm trong cùng một hàng và một cột được nối với nhau.
Thông số kỹ thuật:
- Kích thước : 7×5.2×0.9cm
- Bàn Phím Ma Trận Nhựa Cứng 3x4 Keypad loại phím nhựa cứng.
- Độ dài cáp: 88mm.
- Nhiệt độ hoạt động 0 ~ 70oC.
- Đầu nối ra 7 chân.
- Kích thước bàn phím 65 x 64mm

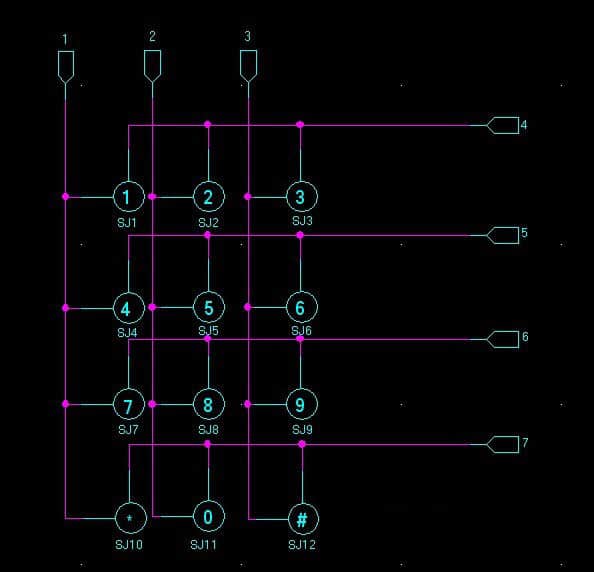

Sơ đồ chân:
Code tham khảo Arduino:
#include <Keypad.h> #include <LiquidCrystal_I2C.h> LiquidCrystal_I2C lcd(0x27, 16, 2); #define Password_Lenght 7 // Give enough room for six chars + NULL char int pos = 0; // variable to store the servo position char Data[Password_Lenght]; // 6 is the number of chars it can hold + the null char = 7 char Master[Password_Lenght] = "123456"; byte data_count = 0, master_count = 0; bool Pass_is_good; char customKey; const byte ROWS = 4; const byte COLS = 3; char keys[ROWS][COLS] = { {'1', '2', '3'}, {'4', '5', '6'}, {'7', '8', '9'}, {'*', '0', '#'} }; bool door = true; byte rowPins[ROWS] = {2, 3, 4, 5}; //connect to the row pinouts of the keypad byte colPins[COLS] = {6, 7, 8}; //connect to the column pinouts of the keypad Keypad customKeypad( makeKeymap(keys), rowPins, colPins, ROWS, COLS); //initialize an instance of class NewKeypad void setup() { lcd.begin(); lcd.backlight(); lcd.print(" Dien Tu Nshop"); lcd.setCursor(0, 1); lcd.print("--Ban Phim 3x4--"); pinMode(13,OUTPUT); delay(3000); lcd.clear(); } void loop() { if (door == 0) { customKey = customKeypad.getKey(); if (customKey == '#') { lcd.clear(); ServoClose(); lcd.print(" Led Da Tat"); delay(3000); door = 1; } } else Open(); } void clearData() { while (data_count != 0) { // This can be used for any array size, Data[data_count--] = 0; //clear array for new data } return; } void ServoOpen() { digitalWrite(13,HIGH); } void ServoClose() { digitalWrite(13,LOW); } void Open() { lcd.setCursor(0, 0); lcd.print(" Nhap Mat Khau"); customKey = customKeypad.getKey(); if (customKey) // makes sure a key is actually pressed, equal to (customKey != NO_KEY) { Data[data_count] = customKey; // store char into data array lcd.setCursor(data_count, 1); // move cursor to show each new char lcd.print(Data[data_count]); // print char at said cursor data_count++; // increment data array by 1 to store new char, also keep track of the number of chars entered } if (data_count == Password_Lenght - 1) // if the array index is equal to the number of expected chars, compare data to master { if (!strcmp(Data, Master)) // equal to (strcmp(Data, Master) == 0) { lcd.clear(); ServoOpen(); lcd.print(" Led Da Bat"); door = 0; } else { lcd.clear(); lcd.print(" Sai Mat Khau"); delay(1000); door = 1; } clearData(); }
